Specifications

Mechanical U7 Outdoor Specifications

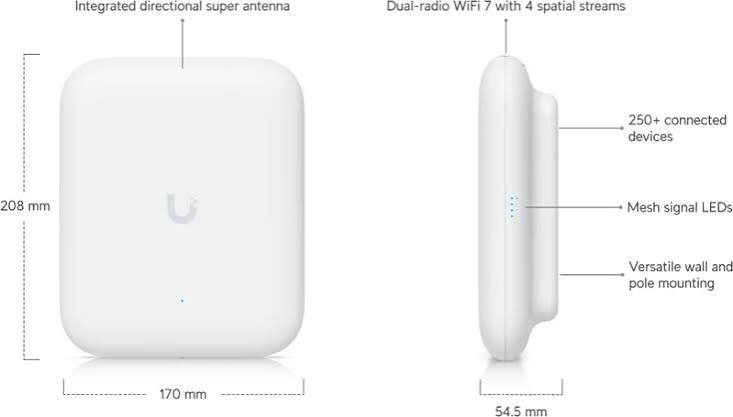

Dimensions 170 x 208 x 54.5 mm (6.7 x 8.2 x

2.1″)

Weight 1.2 kg (2.6 lb)

Enclosure material UV-stabilized polycarbonate, aluminum alloy

Mount material Polycarbonate, SGCC steel

Pole mount diameter 25–60 mm (1–2.36″) on pipe outer diameter

Wind survivability 74.6 N at 200 km/h (16.8 lbf at 125 mph)

Weatherproofing IPX6

Hardware

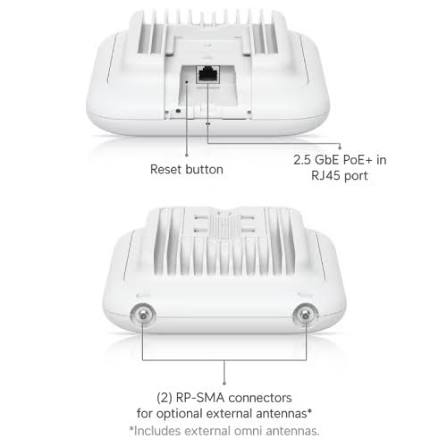

Networking interface (1) 1/2.5 GbE RJ45 port

Management interface Ethernet

Power method PoE+

Power supply UniFi PoE Switch

Supported voltage range 42.5—57V DC

Max. power consumption 19W

Max. TX power 2.4 GHz: 23 dBm, 5 GHz: 26 dBm

MIMO 2 x 2 (DL/UL MU-MIMO) for 2.4 GHz and 5 GHz

Max. data rate 2.4 GHz: 688 Mbps, 5 GHz: 4.3 Gbps

Antenna gain 2.4 GHz: 8 dBi (Directional internal), 3 dBi (External omni)

Antenna beam width 2.4 GHz: 90°, 5 GHz: 45°

Antennas (1) Directional internal antenna, (2) External omni antennas

LEDs (1) Power: white/blue, (4) Mesh signal: blue

Button Factory reset

Mounting Wall, ceiling, pole (Included)

Ambient operating temperature -30 to 60° C (-22 to 140° F)

Ambient operating humidity 5 to 95% noncondensing

Certifications CE, FCC, IC

Software

WiFi standards 802.11a/b/g/n/ac/ax/be (WiFi 6, WiFi 7)

Wireless security WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)

BSSID 8 per radio

VLAN 802.1Q

Advanced QoS Per-user rate limiting

Guest traffic isolation Supported

Concurrent clients 250+

Supported Data Rates 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11b: 1, 2, 5.5, 11 Mbps

802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n: 6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40)

802.11ac: 6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80/160)

802.11ax (WiFi 6): 7.3 Mbps to 2.4 Gbps (MCS0 – MCS11 NSS1/2, HE 20/40/80/160)

802.11be (WiFi 7): 7.3 Mbps to 4.3 Gbps (MCS0 – MCS13 NSS1/2, EHT 20/40/80/160/240)

Application Requirements UniFi Network Version 8.3 and later
